A16-065

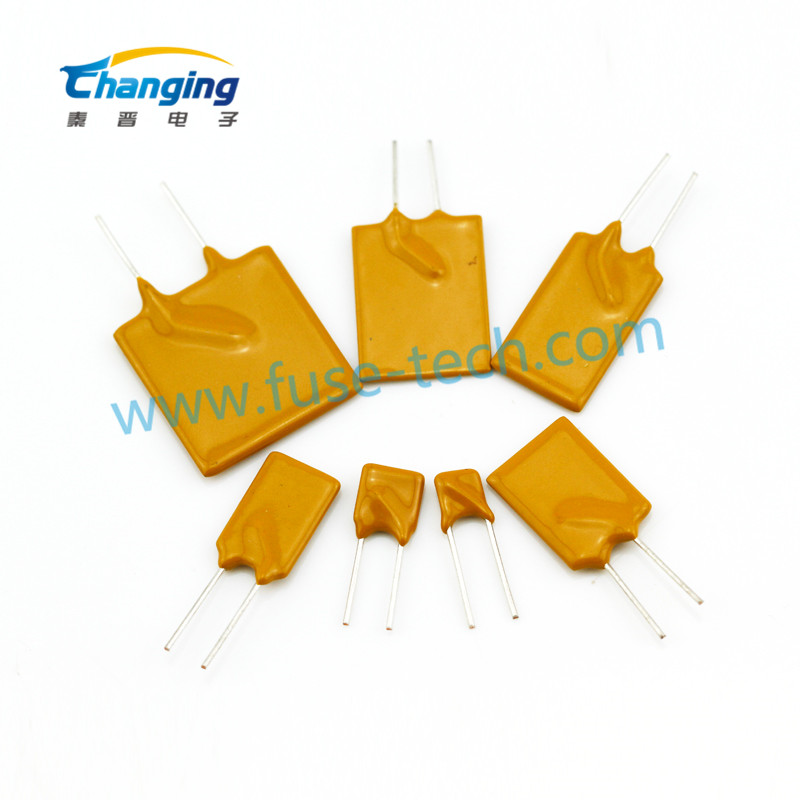

集電通A16-065自恢復保險絲產品適用于工作電壓較低、工作電流較大的電路中，可廣泛應用于電源轉換器、摩托車、汽車、電腦電源、微電機、計算機接口、CPU等領域。
| 型號 | Marking |
Ihold (A) |
Itrip (A) |
Vmax (V) |
Imax (A) |
Pdtyp. (W) |
Trip current (A) |
Trip time (S) |
Rimin (Ω) |
R1max (Ω) |
Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A16-030 | α16GF030 | 0.30 | 0.60 | 16 | 40 | 0.30 | 1.50 | 1.00 | 0.300 | 1.300 |
 |
| A16-050 | α16GF050 | 0.50 | 1.00 | 16 | 40 | 0.40 | 2.50 | 1.10 | 0.200 | 0.760 |
|
| A16-065 | α16GF065 | 0.65 | 1.30 | 16 | 40 | 0.60 | 3.25 | 5.00 | 0.120 | 0.650 |
|
| A16-075 | α16GF075 | 0.75 | 1.50 | 16 | 40 | 1.00 | 3.75 | 15.0 | 0.100 | 0.400 |
|
| A16-090 | α16GF090 | 0.90 | 1.80 | 16 | 40 | 0.60 | 4.50 | 1.20 | 0.090 | 0.250 |
|
| A16-100 | α16GF100 | 1.00 | 2.00 | 16 | 40 | 1.00 | 5.00 | 15.0 | 0.060 | 0.24 |
|
| A16-110 | α16GF110 | 1.10 | 2.20 | 16 | 40 | 0.70 | 5.50 | 2.30 | 0.060 | 0.240 |
|
| A16-120 | α16GF120 | 1.20 | 2.40 | 16 | 40 | 0.60 | 6.00 | 5.50 | 0.050 | 0.240 |
|
| A16-135 | α16GF135 | 1.35 | 2.70 | 16 | 40 | 1.50 | 6.75 | 15.0 | 0.040 | 0.190 |
|
| A16-160 | α16GF160 | 1.60 | 3.20 | 16 | 40 | 1.50 | 8.00 | 15.0 | 0.030 | 0.200 |
|
| A16-185 | α16GF185 | 1.85 | 3.70 | 16 | 40 | 1.50 | 9.25 | 15.0 | 0.030 | 0.160 |
|
| A16-200 | α16GF200 | 2.00 | 4.00 | 16 | 40 | 1.50 | 10.0 | 15.0 | 0.018 | 0.014 |
|
| A16-250 | α16GF250 | 2.50 | 5.00 | 16 | 40 | 1.50 | 12.5 | 15.0 | 0.020 | 0.120 |
|
| A16-300 | α16GF300 | 3.00 | 5.10 | 16 | 40 | 2.30 | 15.0 | 2.00 | 0.020 | 0.110 |
|
| A16-400 | α16GF400 | 4.00 | 6.80 | 16 | 40 | 2.40 | 20.0 | 3.50 | 0.020 | 0.080 |
|
| A16-500 | α16GF500 | 5.00 | 8.50 | 16 | 40 | 2.60 | 25.0 | 3.60 | 0.014 | 0.033 |
|
| A16-600 | α16GF600 | 6.00 | 10.20 | 16 | 40 | 2.80 | 30.0 | 5.80 | 0.001 | 0.031 |
|
| A16-700 | α16GF700 | 7.00 | 11.90 | 16 | 40 | 3.00 | 35.0 | 8.00 | 0.008 | 0.022 |
|
| A16-800 | α16GF800 | 8.00 | 13.60 | 16 | 40 | 3.00 | 40.0 | 9.00 | 0.006 | 0.021 |
|
| A16-900 | α16GF900 | 9.00 | 15.30 | 16 | 40 | 3.30 | 45.0 | 12.0 | 0.004 | 0.018 |
|
| A16-1000 | α16GF1000 | 10.00 | 17.00 | 16 | 40 | 3.60 | 50.0 | 12.5 | 0.004 | 0.015 |
|
| A16-1100 | α16GF1100 | 11.00 | 18.70 | 16 | 40 | 3.70 | 55.0 | 13.5 | 0.003 | 0.013 |
|
| A16-1200 | α16GF1200 | 12.00 | 20.40 | 16 | 40 | 4.20 | 60.0 | 16.0 | 0.003 | 0.012 |
|
| A16-1400 | α16GF1400 | 14.00 | 23.80 | 16 | 40 | 4.60 | 70.0 | 20.0 | 0.003 | 0.011 |
|
